Exhaust Bolt Extraction Made Simple!

“This tool made tearing out those stuck exhaust bolts a breeze. Finally, a kit that’s tough enough for real work but precise enough to protect my engine. Definitely keeping this in my garage for every Hemi repair.”        -Jake T.

Why Get Our Exhaust Manifold Template Removal Tool Set?

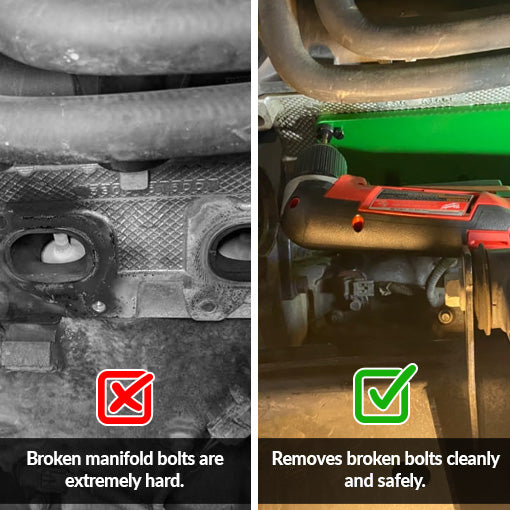

✅ Hassle-Free Bolt Extraction: Broken or seized exhaust bolts can turn a simple repair into a frustrating ordeal. This tool kit allows you to remove them safely and efficiently without risking damage to your cylinder head. It saves time, reduces stress, and ensures a professional-quality result every time.

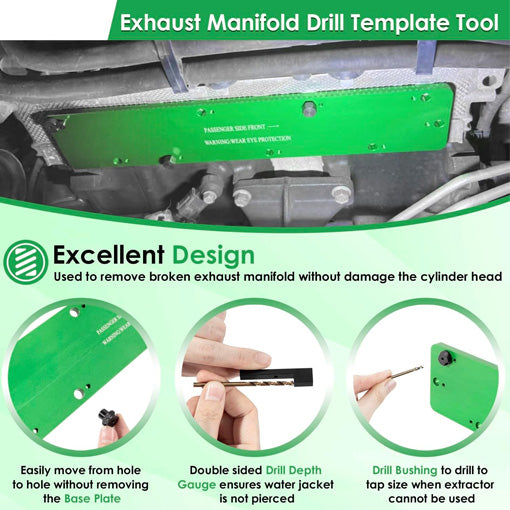

✅ Precision-Engineered Design: Each component is carefully crafted for maximum accuracy, from the double-sided drill depth gauge to the slip-fit bushings. This precise engineering ensures proper alignment and prevents accidental puncturing of the water jacket. You can work confidently knowing your engine remains protected throughout the process.

✅ Comprehensive Kit for All Steps: This kit provides everything you need, from drilling broken bolts to restoring damaged threads. It includes extractors, drill bits, bushings, a tap guide, and a blow-molded case for organized storage. With all essential tools in one package, you can complete the job quickly and efficiently without searching for additional parts.

🌟HOW TO USE

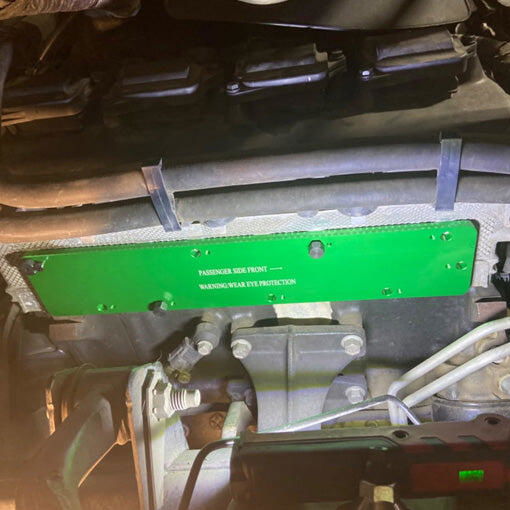

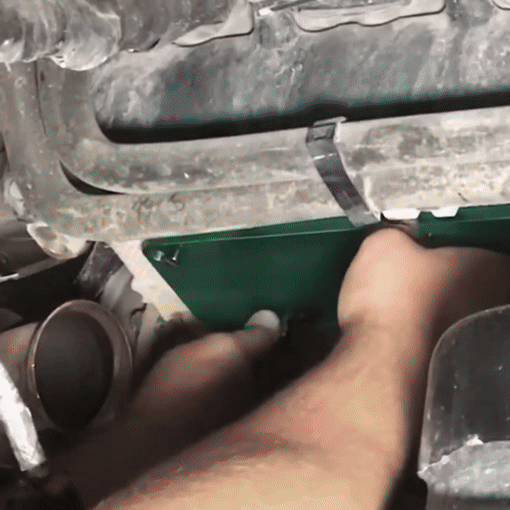

• First, ensure the surface is clean and the broken bolts are flush with the surface. Mount the Base Plate correctly, secure it with the Lock Screw, and use the Alignment Bolts to center it evenly.

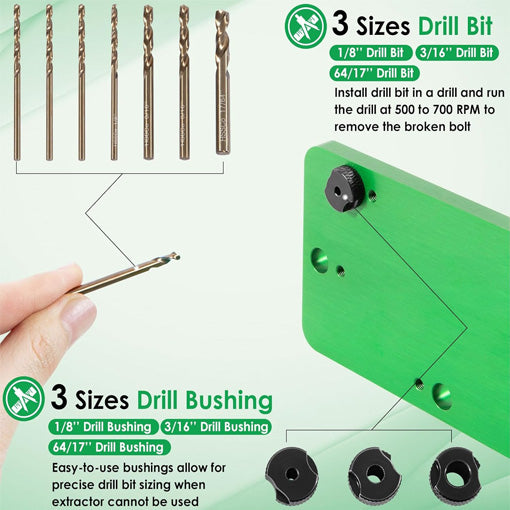

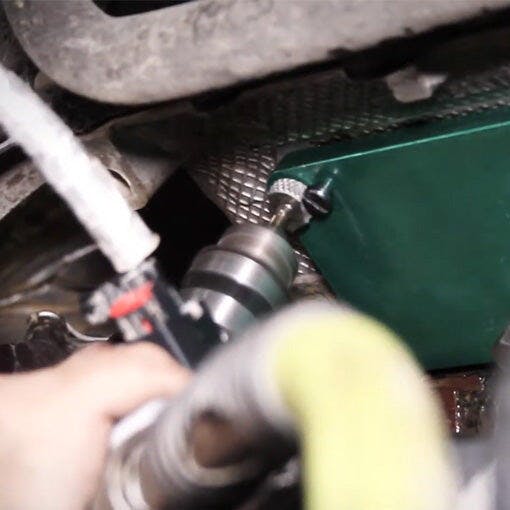

• Next, insert the 1/8" Drill Bushing and install the 1/8" Drill Bit in your drill. Use the Drill Depth Gauge to avoid puncturing the water jacket and run the drill at 500–700 RPM. Apply transmission fluid or cutting oil to keep the bit cool, and periodically pull it out to remove shavings. Switch to 3/16" Drill Bit & Bushing to drill about 1" deep, then remove the Drill Bushing and use the Extractor with a hammer to remove the broken bolt. If needed, drill fully through the bolt with the 3/16" and 17/64" bits and repeat extraction.

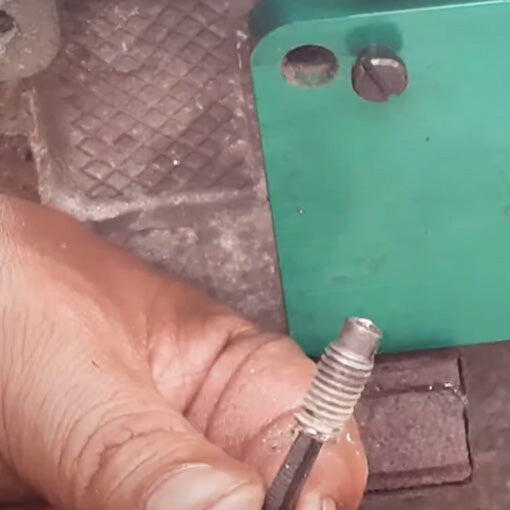

• Lastly, insert the Tap Guide and use the M8x1.25 Tap to clean out any remaining steel from the threads. Screw the tap in and out until the threads are fully restored and the job is complete.

📓FREQUENTLY ASKED QUESTIONS

Q: Can this kit handle all broken bolts on a Dodge 5.7L Hemi engine?
A: Yes, it’s custom-fitted for Dodge 5.7L Hemi motors and includes multiple drill bit sizes and extractors to tackle bolts of various conditions.

Q: What are the advantages over standard bolt removal methods?
A: Standard methods often risk damaging threads or cylinder heads. This kit provides precise drilling, alignment, and extraction, minimizing risk and reducing repair time.

⚙️ Specifications:

• Item Weight: 4.64 lbs

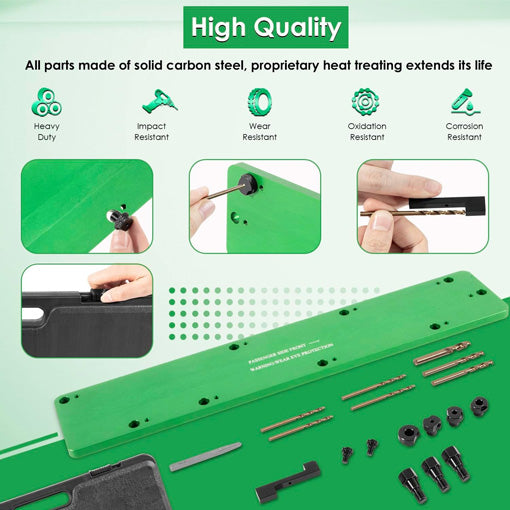

• Material: Metal construction with polished exterior

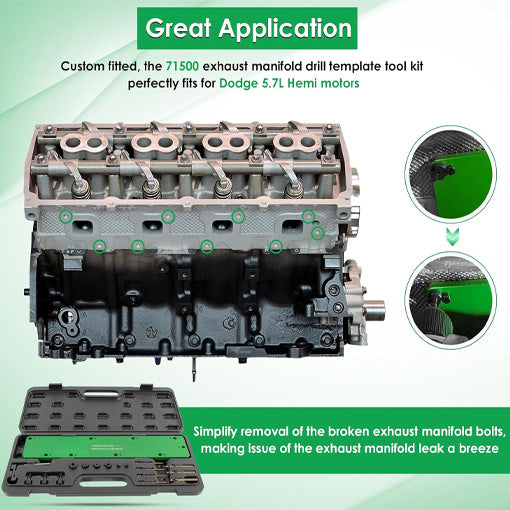

• Compatibility: Dodge 5.7L Hemi motors

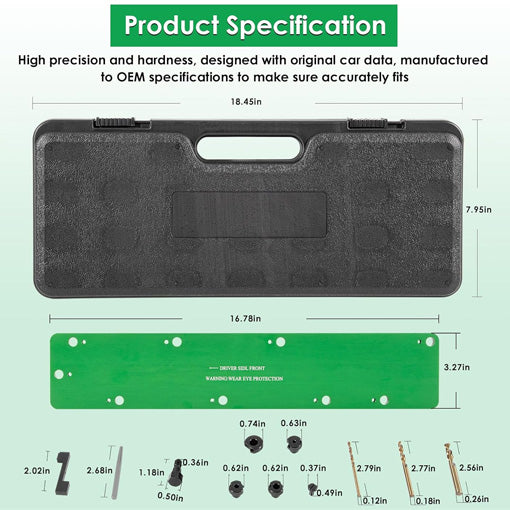

• Product Dimensions: 19.21 x 8.39 x 1.85 inches

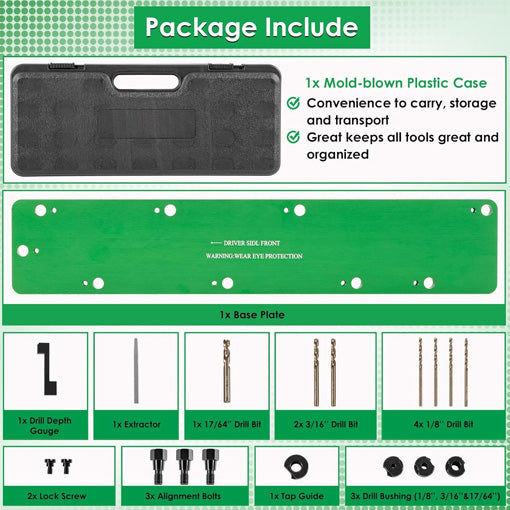

📦Package Inclusions:

• 1 x Blow-Molded Case

• 1 x Stud Extractor

• 1 x Drill Plate

• 1 x Drill Depth Gauge

• 1 x Alignment Bolt

• 1 x 8mm Tap Aligner

• 1 x Lock Screw

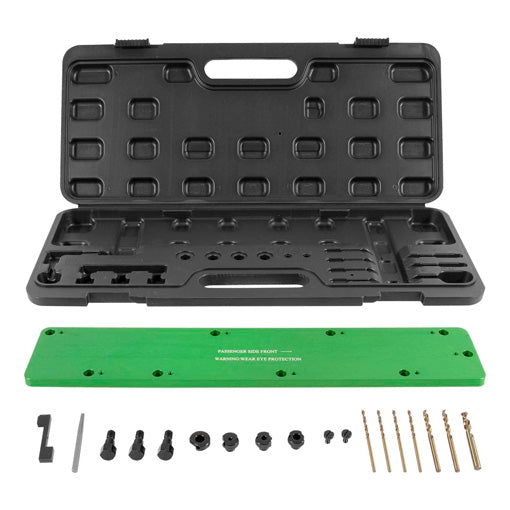

• 3 x Slip/Fix Bushings (1/8'', 3/16'', 17/64'')

• 3 x Cobalt Drill Bits (1/8'', 3/16'', 17/64'')
