Your Automotive Testing Essential!

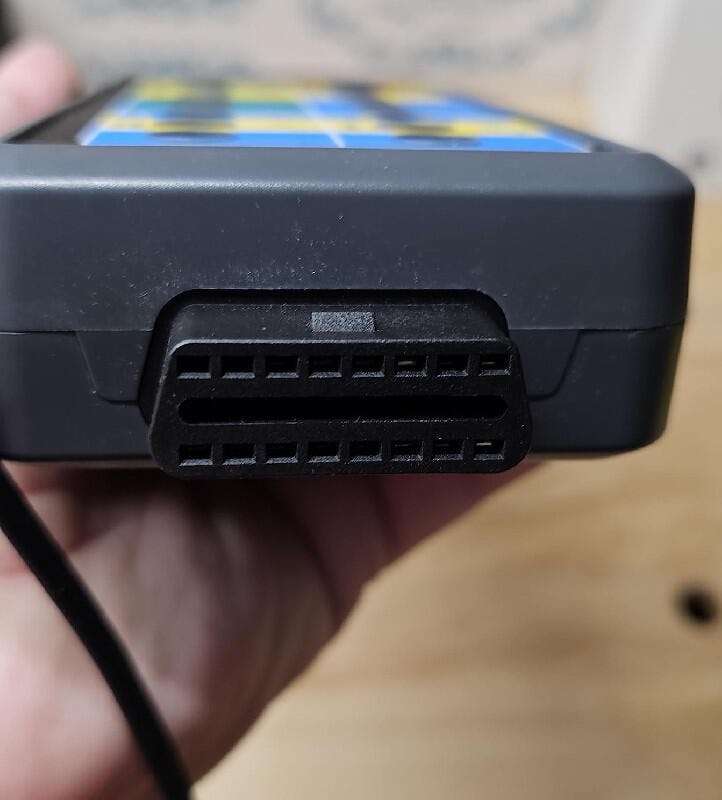

“It functions as advertised, plugged into a can bus vehicle, turned the key on to watch the network talking, then used a scope to watch the data, it's a lot better than climbing under the dash to measure voltage and resistance at the port, etc. Easy to use, plug it in and do your test measurements.” - Geremiah

Why Get Our OBD2 Breakout Box Detector?

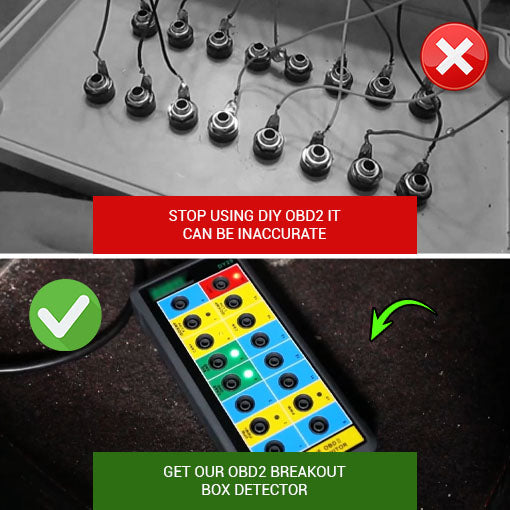

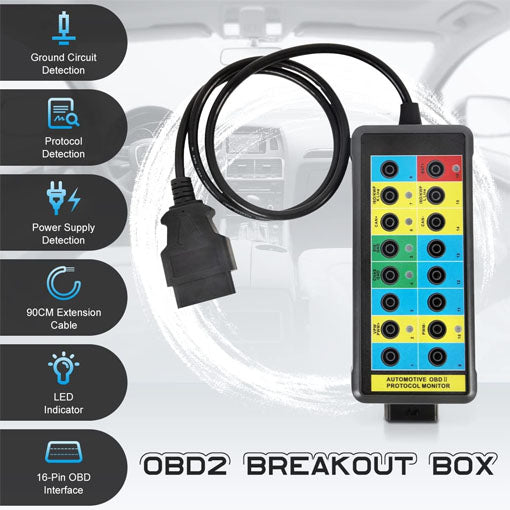

✅Efficient: Without a proper breakout box, you may not get accurate readings. The OBD2 Breakout Box Detector is a professional automotive tool designed for testing. It provides easy access to the OBDII connector, allowing for safe and convenient monitoring of protocol, power, and ground signals.

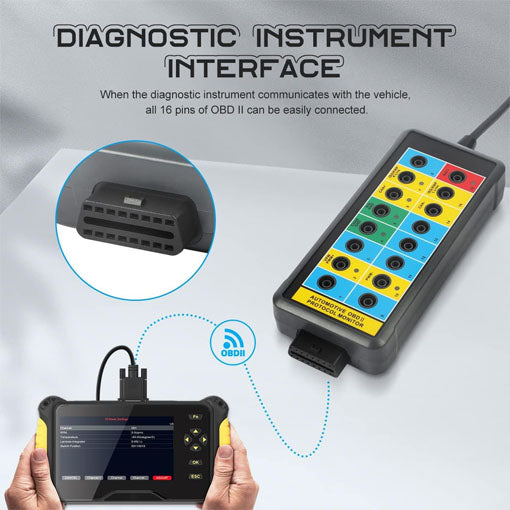

✅Accurate results: The input jack layout mimics the 16-pin OBD2 interface, making testing quick and intuitive. All 16 OBD2 pins can be easily connected for communication with the vehicle, providing straightforward access to the data bus lines.

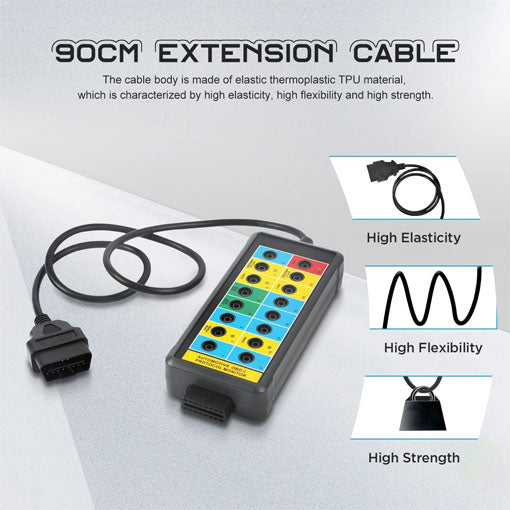

✅Smooth operation: The OBD2 connector extension cable uses multithreading data connection technology for faster and smoother connections. Its elastic thermoplastic TPU material provides high elasticity, strength, and resilience.

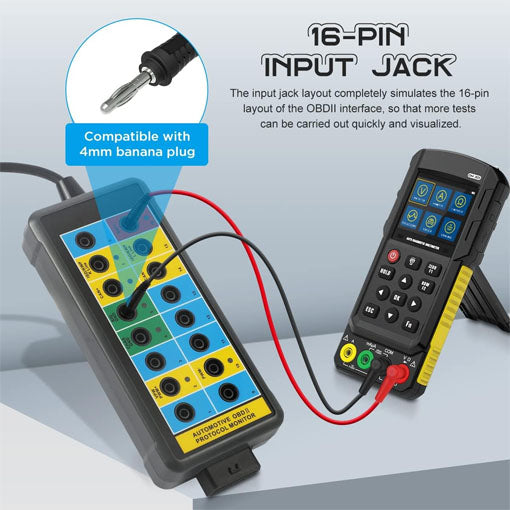

✅Easy to connect: The OBD2 breakout box uses safe banana sockets and the built-in input jack can be connected to any type of 4mm banana plug, including those with safety sheaths, making it easier to connect the breakout box to a multimeter or oscilloscope.

🌟REMINDERS

• Pins Definition

• Pin 1/Pin 3/Pin 8/Pin 9/Pin 11/Pin 12/Pin 13: OEM Discretionary

• Pin 2: SAE-J1850 PWM PROTOCOL LINE(+)

• Pin 4: Chassis Ground

• Pin 5: Signal ground

• Pin 6: CAN High (ISO 15765-4 and SAE-J2284)

• Pin 7: K-line for ISO 9141-2 and ISO 14230-4

• Pin 10: SAE-J1850 PWM PROTOCOL LINE(-)

• Pin 14: CAN Low (ISO 15765-4 and SAE-J2284)

• Pin 15: L-Line (ISO9141-2 and ISO 14230-4)

• Pin 16: Battery +

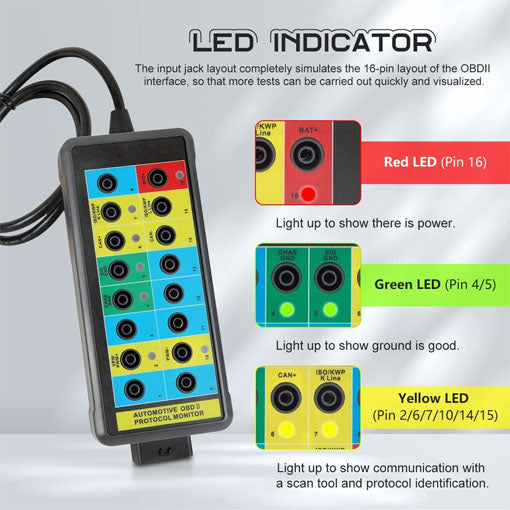

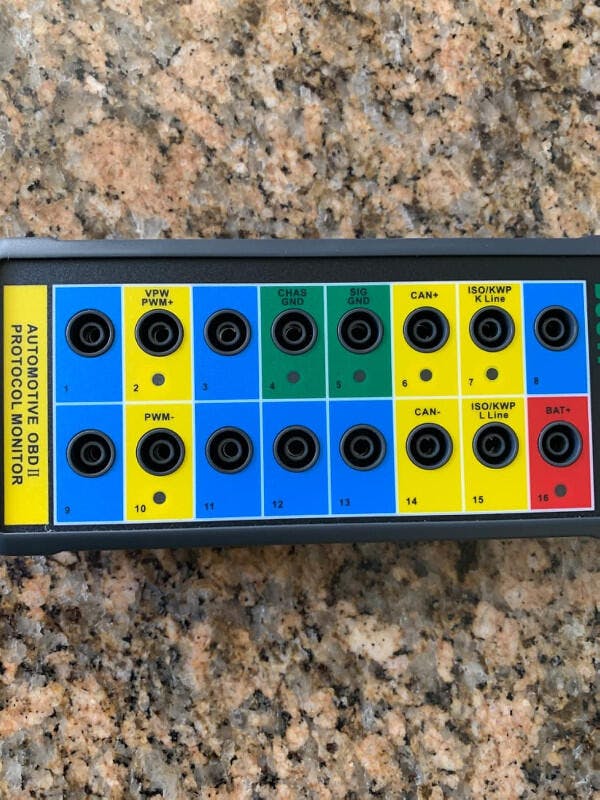

• LED INDICATION

• The Yellow LED (Pins 2/6/7/10/14/15) indicates communication with a scan tool and protocol identification.

• The Green LED (Pins 4/5) shows good ground

• A Red LED (Pin 16) signals that power is present.

• This product is directly connected to the vehicle data link.

• Do not use this product to connect a load device with a power exceeding 1 ampere.

• Do not directly short-circuit the 16th pin, the 4th pin, and the 5th pin of this product.

• When you are not sure whether your operation will cause problems, please stop using this product immediately.

• When you are not sure about the electrical circuit on the car, do not use a jumper to short-circuit the input jack of this product.

• Improper use may damage the vehicle data communication system, related circuits, or systems.

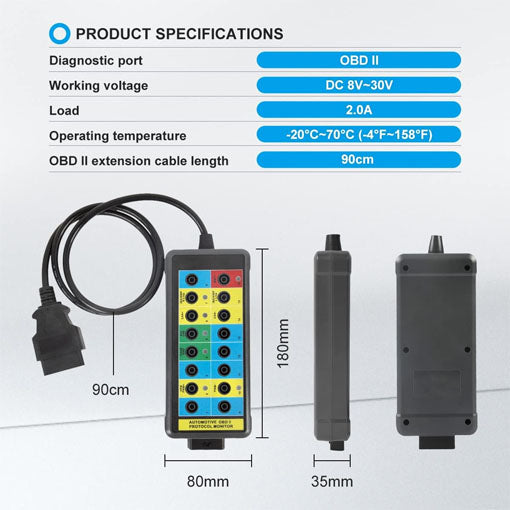

⚙️ Specifications:

• Color: Multicolored

• Item Weight: ‎13.1 ounces

• Diagnostic port: OBD II

• Working voltage: DC 8V-30V

• Load: 2.0A

• Operating temperature: -20°C-70°C (-4°F-158°F)

• OBD II extension cable length: 90cm

• Product dimensions:  ‎7.09 x 3.15 x 1.38 inches

📦Package Inclusion

• 1 x OBD2 Breakout Box Detector

• 1 x 90CM Extension Cord
